Plumbing & Mechanical Engineer Fire Protection

Tips on how to navigate the storage requirements in NFPA 13

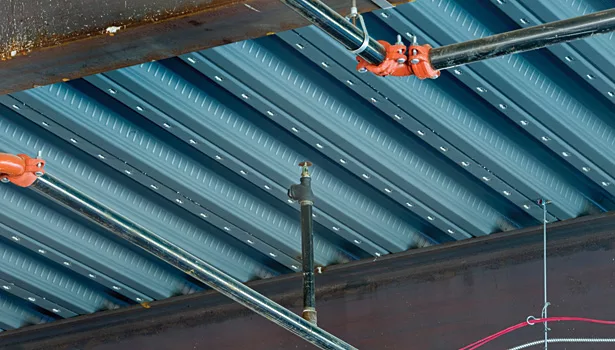

Putting the puzzle together with sprinkler systems.

Navigate storage requirements

The National Fire Protection Association combined multiple fire protection documents and created NFPA 13. The 2013 edition addresses storage requirements in chapters 12-22. Photo credit: ©istockphoto.com/alacatr

Navigate storage requirements
John Campbell, P.E., is the vice president of international services at Telgian.
Navigate storage requirements
Navigate storage requirements
May 23, 2014

When I began my career in 1987, NFPA 13 and its “Standard for the Installation of Sprinkler Systems” was an easy document to use.

There were three basic types of sprinklers and two orifice sizes used for almost all systems except deluge. Most buildings fell into one of three occupancy classifications, regardless of what was stored. Other NFPA standards applied to warehouses with large general storage, rack storage and tires. Plastics were less prevalent and most everything was Class I, II, III or IV.

However, protection technology quickly advanced. One of the biggest leaps was the development of the early suppression-fast response sprinkler. Storage began to take on a whole new level of importance because of the unique ways items were being stored, advances in protection technology and increased use of plastics. To address protection in light of new hazards and technological advances, NFPA combined multiple protection documents and created one comprehensive set of guidance with NFPA 13.

This marked an important advancement in sprinkler-system design, requiring a designer to review all aspects of an occupancy classification, including storage. Today, a basic understanding of how to use NFPA 13 is essential in determining appropriate levels of protection.

Storage in the 2013 edition of NFPA 13 is addressed in chapters 12-22, with each detailing specific requirements depending on what is being stored and how. To apply NFPA 13, begin with five essential questions:

  1. What will be stored? Are the items comprised mostly of plastics? The amount of plastics determines if the commodity is considered a Class IV or a Group A plastic. Is the plastic expanded or unexpanded? Plastics require different protection than lumber, which requires different protection than tires.
  2. How will it be stored? Rack storage, solid-pile storage and bin-box storage have different protection needs. Will the products be in cartons? Will they be encapsulated and wrapped entirely in plastic? Will single, double or multiple row racks be used? Will solid shelving be used? Will shelves be on the rack, or will they be the gondola-type shelves found in a grocery? Shelving provides an obstruction to sprinkler discharges, preventing water from reaching products stored under the shelf — so different protection options must be evaluated. Choosing the best option depends on how the product is being stored.
  3. How high will it be stored?Products stored 12 ft. in height or lower can be protected using ordinary and extra-hazard occupancy criteria. Once storage exceeds 12 ft., protection options differ. For example, criteria for rack storage are based on a 20-ft. height. Storage higher or lower than this can result in changes to the design density.
  4. What will be the ceiling height?  This has an impact on protection criteria. Testing is based on certain ceiling/roof heights and clearances provided between the top of storage and the roof deck.
  5. Does the owner have a sprinkler system preference?Some owners prefer ESFR protection while others leave the decision to the engineer. Each type of system and sprinkler presents unique opportunities for protection of storage, so flexibility in design can result in significantly reduced project cost.

Once these questions are answered, review NFPA 13 chapters 12 through 22 for the relevant criteria for protection of the commodity. Chapter 12 outlines general requirements for storage, while chapter 22 is largely based on special occupancies. Miscellaneous storage is defined in chapter 13, while chapters 14 and 15 address protection of solid pile, bin box, shelf and back-to-back shelf storage.

Each chapter addresses protection schemes for control mode density/area sprinkler applications, Control Mode Specific Application sprinkler applications, ESFR sprinkler applications and high-expansion foam systems. Chapter 14 addresses Class I through Class IV commodities, while chapter 15 specifically addresses plastic and rubber commodities.

Chapters 16 and 17 address protection for rack storage and both chapters address protection of storage up to 25 ft. in height vs. storage over 25 ft. Similar to chapters 14 and 15, Class I through Class IV commodities are covered in chapter 16, whereas plastic and rubber commodities are specifically addressed in chapter 17. Chapters 18 and 19 address rubber tires and rolled paper, respectively. Special design considerations are addressed in chapter 20, including protection of plastic motor vehicle components; plastics in retail stores; baled cotton; carton records storage; compact storage of paper files, books, magazines, etc.; and high-bay records storage.

Chapter 21 covers alternative designs for specific applications based on actual test conditions for different storage arrangements. These are not meant for general application but provide an alternative design to those outlined in chapters 12-20. Care should be taken when utilizing criteria from chapter 21 to ensure the proper design consideration is used for the specific application.

Consider this example:

The project requires protection of plastic trash cans, laundry baskets, totes and other similar plastic items in double-row racks up to 20 ft. in height in a 30-ft. building. The products will be palletized on open grates in the racks rather than solid shelves and will be cartoned and non-encapsulated. The products should be considered Group A, non-expanded plastics. The owner is requiring use of ESFR protection using K-25.2 ESFR sprinklers.

In this example, our five major questions have been answered:

  • What will be stored? Group A plastics, cartoned, non-expanded and non-encapsulated;
  • How will it be stored? Double-row racks without solid shelves;
  • How high will it be stored?  Up to 20 ft.;
  • How tall is the ceiling/roof? 30 ft.; and
  • What sprinkler/system is to be installed? ESFR.

For rack storage of Group A plastics, refer to chapters 12 and 17 of NFPA for the required design. Chapter 12 gives general requirements for ESFR in that a minimum of 12 sprinklers are required in the design area – four sprinklers on three lines. Chapter 17, Section 17.2, addresses rack storage of plastics up to 25 ft., and Table 17.2.3.1 addresses ESFR protection. Four options are available for single-, double- and multiple-row racks of cartoned, non-expanded plastics stored up to 20 ft. in a 30-ft. building, depending on the K-factor. As this example calls for K-25.2, the criteria calls for pendent orientation of the sprinklers providing a minimum operating pressure of 20 psi.

Consistent use of the five key questions and a basic understanding of NFPA 13 will help determine the right solution for protection.



Author bio: John Campbell, P.E., is the vice president of international services at Telgian. Campbell specializes in the fire protection field by providing engineering and consulting services on projects in industrial, mercantile, government and residential occupancies before, during and after construction, considering factors such as fire resistance, occupancy, water supplies and egress facilities. Contact Campbell at jcampbell@telgian.com.
