If you’re anything like me, the first thing that comes to mind when you think about variable speed circulators is 1970s rock band Supertramp.

No? Okay, maybe you’re not like me. Either way, allow me to elucidate.

Supertramp’s 1979 hit “The Logical Song” is one of the decade’s best, with one of the greatest lines ever: “Watch what you say, or they’ll be calling you a radical…”

Well, in hydronics, there is no radical, cynical, fanatical or criminal. Okay, sometimes there’s fanatical, but that’s not the point.

The point is hydronics is logical. Downright Spockian if you think about it. There’s a beautiful logic to how all your parts and pieces work, both on their own and especially in how they work together within the dynamics of the system.

However, when it comes to variable speed circulators, sometimes “The Logical Song” goes right out the window. All we’re left with is “Goodbye Stranger” and Mr. Spock on his every seven year pon farr sabbatical back to Vulcan.

Let's consider the logic behind variable speed circulators, both Delta-T and Delta-P. The prevailing attitude is that they always give you the right flow, no matter what. You can go ahead and call me a radical, but that’s not logical.

For a variable speed circulator to “always” give you the right flow, it would have to have some way of knowing what the Btu/h load of each room and the system is at any given point in time. It would also need an idea of what the outdoor temperature is at any given point in time, as well as how much radiation is installed in each room.

Spoiler alert: It doesn’t know any of those things.

installs a an ECM-powered, three-setting Taco 0015e3 ECM circulator

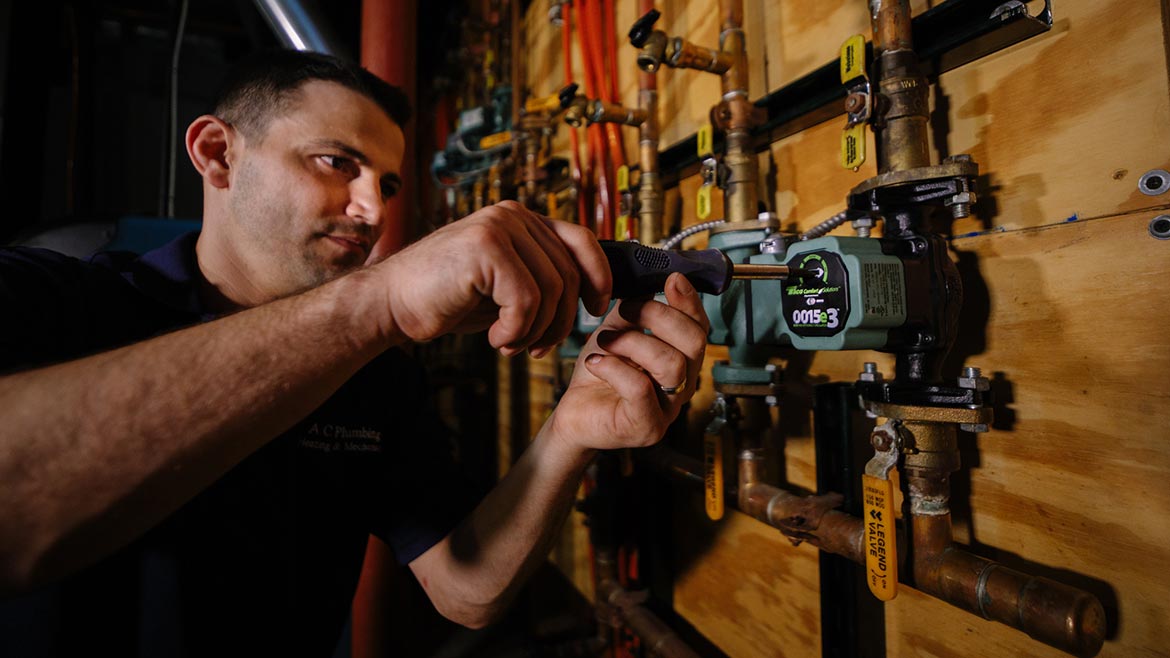

Anthony Caruso, of AC Plumbing, Heating & Mechanical in Cleveland, Ohio, installs a an ECM-powered, three-setting Taco 0015e3 ECM circulator.

For some reason, the industry has insisted on calling these things “smart” pumps. The reality, unfortunately, is they’re not all that smart. What they are, however, is obedient.

For example, if you program a residential Delta-P circulator to operate in the constant pressure mode at 10 feet of head, well then, by golly, that’s what it’s going to do. As zone valves open or close, the circulator will “feel” either less or more resistance against the impeller. Algorithms kick in and tell the circulator to either speed up or slow down. The result is the circulator will always work at 10 feet of head on what’s called the “control curve.” It’s the ultimate flat curve circulator.

Use the same circulator in the same operating mode in a zone pump application and it will still work on its control curve. The difference, however, is it won’t vary its speed because there’s nothing in the single zone that will change resistance against the impeller. Once the circulator finds its happy place on the control curve, that’s where it will work because that’s where you told it to work.

installs a new Taco 0015e3 circulator

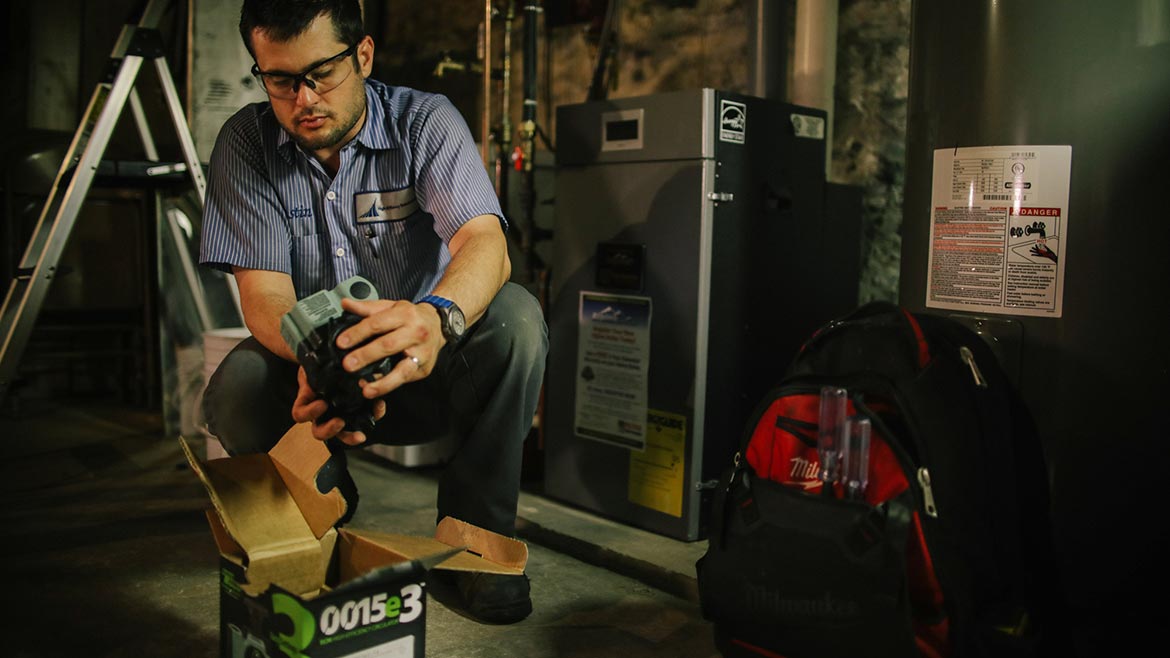

Dustin Ebersole, owner of Lancaster, Pennsylvania-based High Efficiency Solutions, installs a new Taco 0015e3 circulator as part of retrofit work he completed for an existing hydronic system.

Now don’t read that as saying you shouldn’t use a variable speed pump as a zone pump. Far from it. The ability to program the circulator will allow you to set the speed to operate as closely to a zone’s flow and head requirement as possible. That can help reduce over-pumping, which leads to short-cycling, which leads to all kinds of bad things.

If you set the circulator to proportional pressure (those funky-looking curves that slope down and to the left), the only thing that changes is the system will work on whichever funky curve you select.

In neither of these instances is the circulator “giving you the right flow.” If you program them accurately, you might get close.

And one more thing: In both applications, the circulator will run the same speed in October or April as it does in January. Again, because that’s what you told it to do.

Like I said — obedient.

Taco’s 0015e3 ECM circulator offers three easy settings

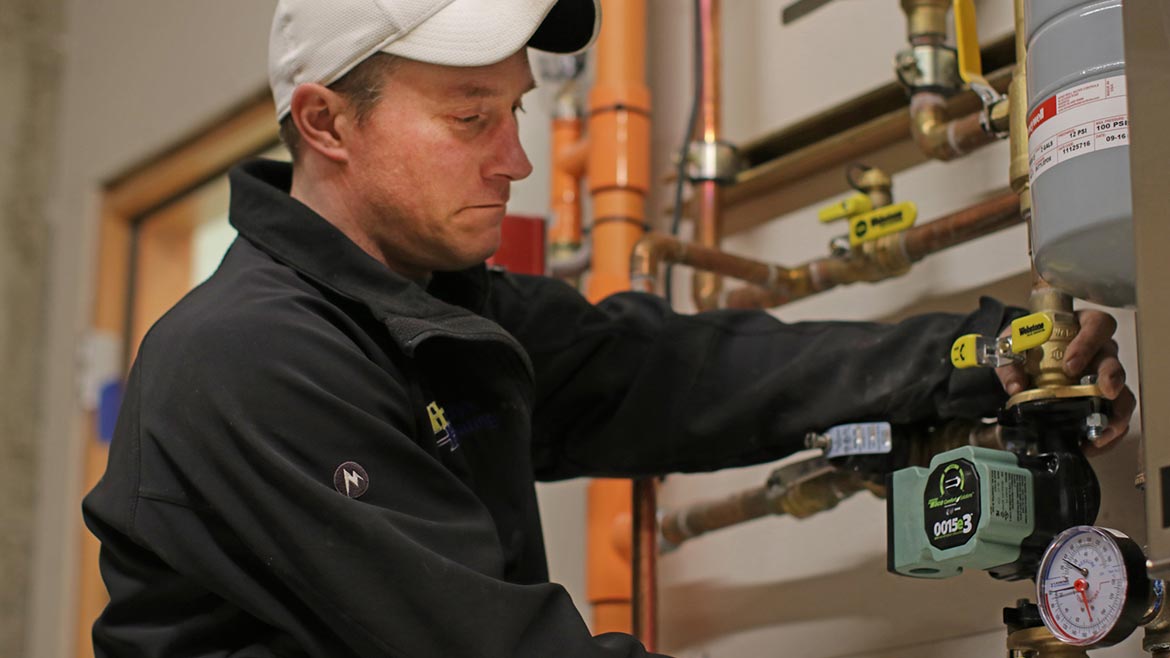

Lead Hydronic Installer Don Dykstra Handy’s Heating, Mount Vernon, Washington, used three-setting Taco ECM 0015e3 circulators for a customer’s radiant system. Taco’s 0015e3 ECM circulator offers three easy settings, replacing all three-speed hydronic circulators in its class, ideal for hydronic systems zoned with circulators or zone valves, and provides three maximum-feet-of-head pressure settings to match system requirements — low (5 feet), medium (10 feet), or high (18 feet), with a maximum flow of 16 gpm.

Delta-T circulators will at least give you a fighting chance at the right flow. What a Delta-T circulator does is vary its speed in order to maintain the designed-for system Delta-T. If you design for a 20-degree Delta-T, well then give it a 20-degree Delta-T. Boilers like it, radiators like it and systems like it.

As zones close, the system needs to take fewer Btu out of the water through the radiation. That makes the return water temperature want to increase (and the Delta-T, or temperature difference) decrease. The logic will tell the circulator to slow down to maintain the designed-for temperature difference. The opposite happens when zones open.

Additionally, as the heat load changes with the weather, the circulator will continue to speed up or slow down to maintain the designed-for Delta-T. That is, until it can’t.

At some point, the circulator will reach its minimum speed. And logic dictates that you can’t go any slower than minimum, no matter what anyone says. The circulator won’t be able to maintain the designed-for Delta-T anymore. The good news, however, is it’ll still be wide enough to minimize bad things like short-cycling and higher-than-desirable return water temperatures to a mod/con boiler.

Just about every variable speed pump manufacturer has a Delta-P circulator with an “auto” function. And while it sounds cool, we do need to check in with Mr. Spock and Supertramp, as well as reality, to understand what “auto” really does.

Taco’s 0015e3 ECM circulators
Lead Hydronic Installer Don Dykstra Handy’s Heating, Mount Vernon, Washington, used Taco’s 0015e3 ECM circulators on a customer’s boiler and indirect-fired water heater. The circulators offer three settings, ideal for hydronic systems zoned with circulators or zone valves.

It’s nice to think that slick little function does all the work for us and takes the thinking out of circulator selection. Unfortunately, that’s utter nonsense.

It’s the professional’s ability to think, and to make sense of all this technology that separates him from the handyman. It takes a pro to understand how all these operating modes work and to select the right one for each job.

That slick little button does, in fact, do a slick little job. But for small residential circulators, that job is limited to continuous circulation applications with modulating thermostatic radiator valves and panel radiators. In that case, given time (like, a lot of time), the circulator will adjust its proportional pressure curve up or down if it experiences a significant change in overall flow (due to TRVs being mostly open or mostly closed) for a significant period of time (20 minutes up to an hour).

Taco’s 00e VT2218 circulator

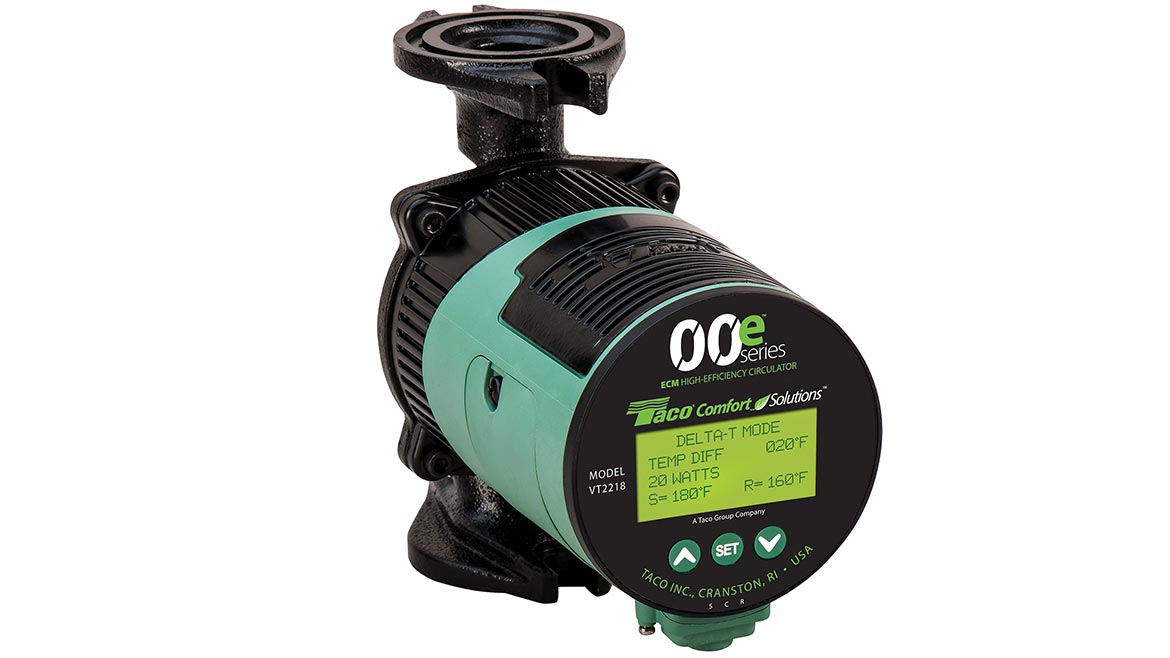

Taco’s 00e VT2218 circulator comes with two temperature sensors to provide delta-T readings to the pump’s control. The high efficiency ECM circ provides up to 22 feet shut-off head and 18 gpm maximum flow, covering a broad range of applications. Typical uses include hydronic systems zoned with zone valves, radiant loops, injection pumping, snowmelt or hydro-air fan coils. Can also be used in constant speed mode for zoning with circulators, indirect water heaters or primary boiler loops.

So what’s the takeaway? It’s this: It's important to understand how variable speed circulators work and what they do. There’s no “magic” involved. These things are logical and obedient.

A poorly programmed variable speed circulator is, at best, an electricity saver. That’s not a bad thing at all, but a poorly programmed variable speed circulator is still an oversized circulator that limits the overall efficiency of a system.

But if you properly apply and program one of these babies, well now you have a circulator than can help enhance the overall efficiency of a system.

And that, mon ami, is a very good thing. And, if you don’t mind my saying, pretty darned logical.
