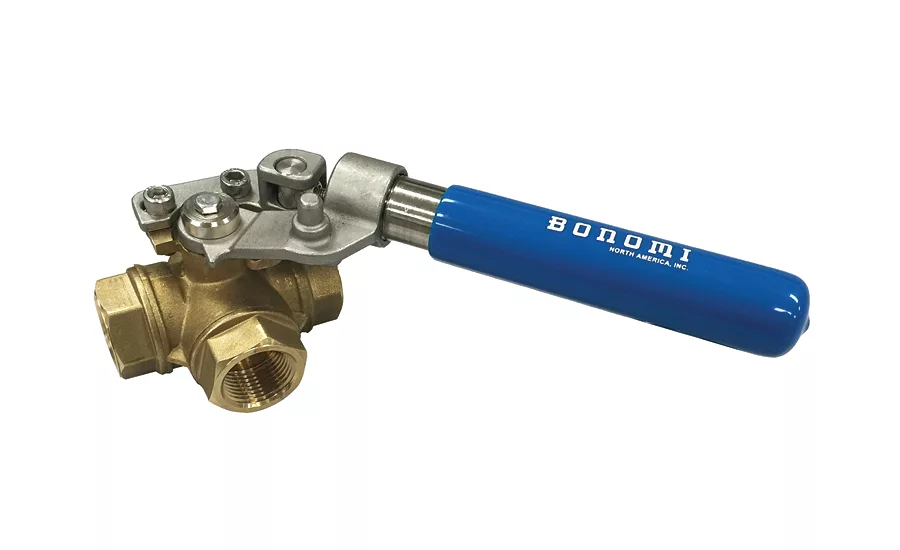

Bonomi brass ball valves with spring return handles
Bonomi’s low-torque three-way, four-seated brass ball valves with spring return handles provide “deadman” mixing or diversion operations in either L-port or T-port configurations. They are available in 1/4" to 2" sizes with FNTP end connections. The 355NSRL (T-port) and 365NSRL (L-port) valves change flow paths with a quarter turn of the spring-loaded handle and return to the original flow path when the handle is released. Both valves feature forged brass bodies. Standard chrome-plated balls and blowout proof stems, PTFE seats and double O-ring stem seals assure leak-free service. Maximum working pressure is 600 WOG.
Bonomi North America. www.bonominorthamerica.com
