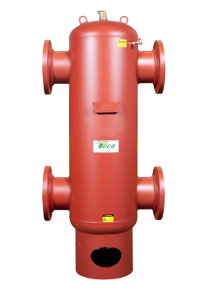

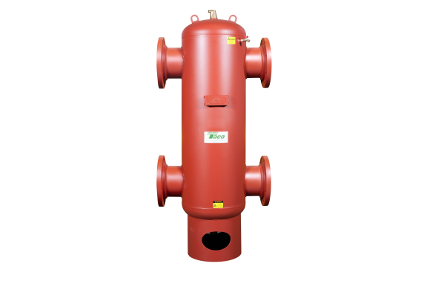

Taco’s commercial Multi-Purpose Tank product line incorporates features of Taco’s buffer tank, 5900 and standard in-line air separator lines within a single product. This product line offers tank sizes ranging in volume between 50 gals. and 1,050 gals. across 16 model sizes with nozzle connections varying between 2” and 10” as standard.
Each unit includes four flanged nozzles, a 2” full port blow down valve and a factory-installed air vent. The MPT tank series is designed, constructed, tested and stamped to the requirements of Section VIII Division 1 of the ASME code. Each tank is designed for 125 psi at 240° F. Should higher working pressures or temperatures be required, custom designs are available.
Each of these tank models are available with four system connections — two on each side of the tank located in both high and low positions to meet a wide range of application requirements. Other options include 1/2” Armaflex insulation for chilled water applications, 1” silicon/fiberglass jacketed insulation for heating applications, and 3/4” NPT connections on each nozzle for temperature/pressure ports and another port located in the center of the tank for mixed sensing.
All MPT tanks are registered with the National Board and U1 papers are supplied if requested at the time of order placement.
