U.S BOILER CO.
ELECTRIC BOILER

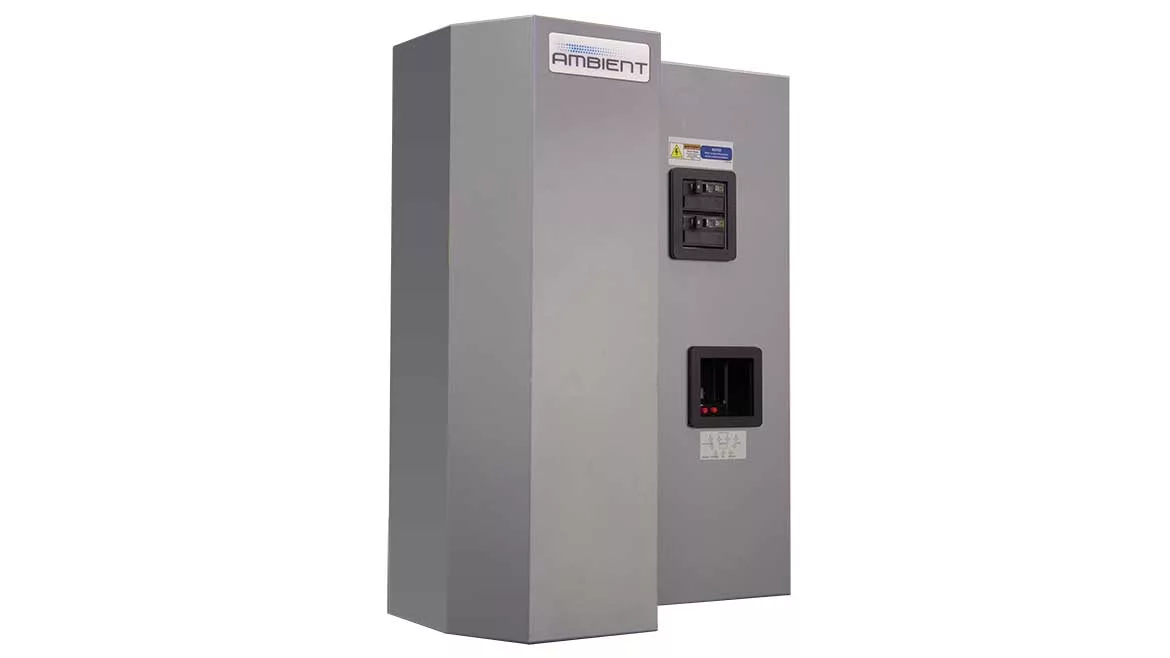

The single-phase Ambient Electric Boiler is an ultra-compact, wall-hung boiler is available in three capacities: 16, 20 and 24 kW, or 54,600, 68,200, and 82,000 Btu/h, respectively. Supply water temperatures between 90° F and 180° F can be provided, using field-proven electric elements. The boiler features a proven control that provides dual setpoint operation, load management control, operation monitoring, with fault and dry-fire protection. Installation is quick and inexpensive because venting, fuel supply and provision of combustion air are not required. Weighing 54 pounds, connections to the heat exchanger are on top, meaning that the system does not need to be drained in order to service the element. The new boiler is CSA C22.2 listed/UL 834 listed and features enhanced, individual element relays. The Ambient Electric Boiler comes with a two-year parts and labor warranty and a 20-year heat exchanger warranty. Regional electrification incentives may apply.
