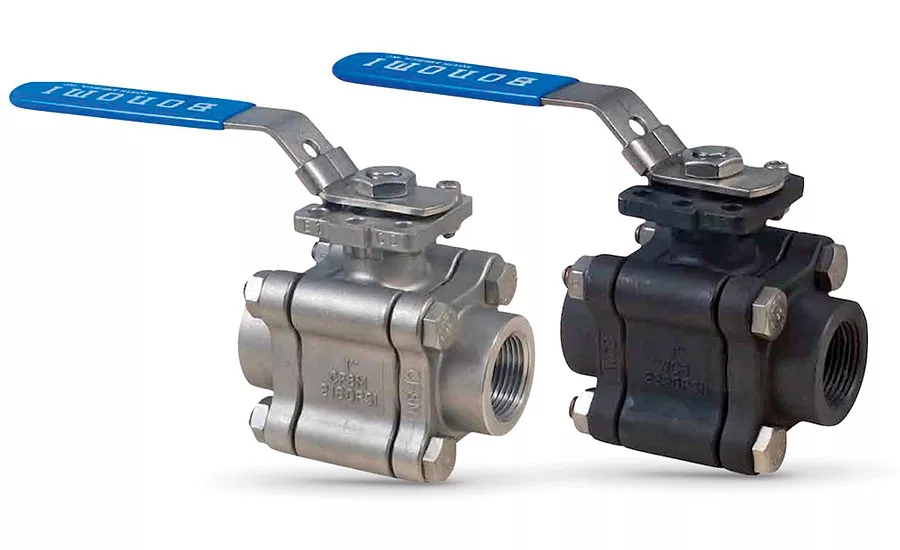

Bonomi’s 630 (Carbon) and 730 (Stainless) Series of automation-ready, full-port, three-piece ball valves for high-temperature and -pressure industrial applications are rated to 1,500 psi in 2-½” through 4” sizes. Carbon steel models are rated to 2,220 psi in sizes ¼” to 2”. Stainless steel models are rated to 2,160 psi in ¼” to 2” sizes. They come standard with ISO-5211 stem and direct-mount actuation pad. A latch-lock handle is standard equipment on the series. Spring return handles are optional. Other options include oval handles, fugitive emissions bonnet, V-ball, seats in Delrin or PEEK, and body materials of Hastalloy, Alloy 20 or Super Duplex. Threaded end connections are standard. They are also available in socket weld and butt weld.

Bonomi North America. www.bonominorthamerica.com
